Simpled DFF-SP Smart Lock

Advanced Security, Seamless Access

Original HubSpot URL: https://learn.simpled.uk/simpled-dff-sp-smart-lock

Unlocking Methods

  • Outside: App, Fingerprint, Pin Code, Card, Mechanical Key

  • Inside: App, Remote Controller

Specifications

  • Model: DFF-SP

  • Materials: SS304 Handle and Panel

  • Weight: 3 KG

  • Colour: Silver, Black

  • Battery: 6V/4 x AA (recommended lithium)

  • Door Thickness: 35-65 mm (requires longer spindle and screws for thicker doors)

  • Data Capacity: Fingerprint: 200, Passcode: 150, Card: 200, Unlimited eKeys

  • Working Temperature: -10°C to 55°C

  • Low Battery Alarm: Yes, below 4.8V

  • Weatherproof: Yes (for outdoor use)

What's Included?

  • 2x Emergency Keys

  • 2x Proxy Fobs

  • 1x Phone Tag (Sticker)

  • 4x Alkaline Batteries (1.5V)

  • 1x 60mm Spindle

  • 1x Split Pin

  • 2x Sliding Screws

  • 2x M5x30mm Screws

  • 2x M5x40mm Screws

  • 4x Mortice Screws (for Wooden Door)

  • 4x Mortice Screws (for Aluminum Door)

  • 1x 80mm Spindle

  • 2x Screw Stubs (30x8)

  • 2x Screw Stubs (35x8)

  • 2x Rubber Gaskets

Installation

1. Remove Existing Handle: Detach the old handle and cylinder.

2. Test Compatibility: Ensure the lock can retract bolts/hooks fully in your multipoint mechanism.
3. Adjust Handle Direction: Rotate the handle 180 degrees if needed.

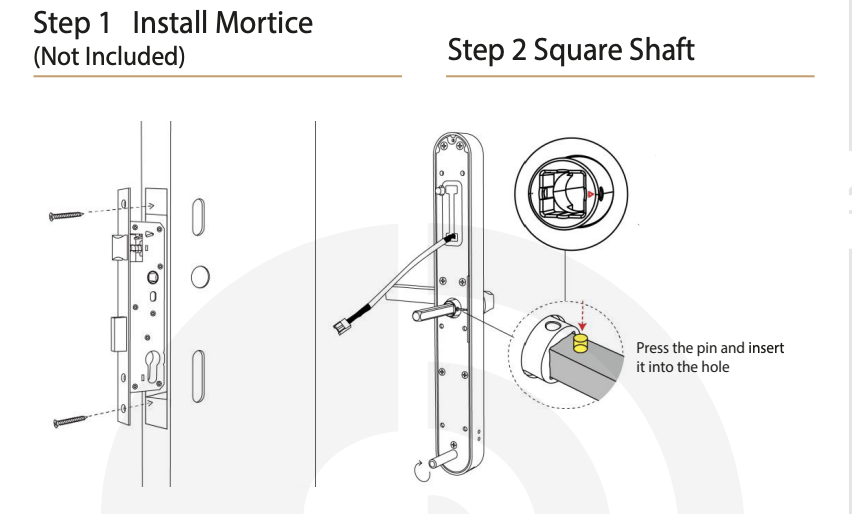

Install Mortice & Attach Lock Body:

Install the mortice (not included), connect wires, and ensure the spindle arrow points towards the handle.

Screenshot 2024-11-22 at 13.31.15

Screenshot 2024-11-22 at 13.31.15

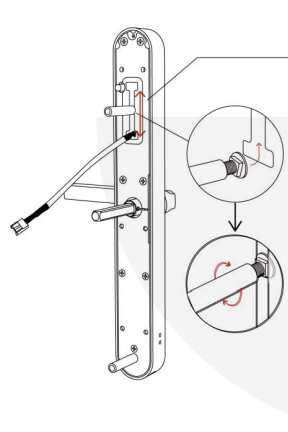

Install Sliding Screw Casing

The screw casing is adjustable and can be positioned 35mm from the square shaft. Adjust based on the location of the hole drilling or the existing hole on the old door.

Screenshot 2024-11-22 at 13.43.18

Screenshot 2024-11-22 at 13.43.18

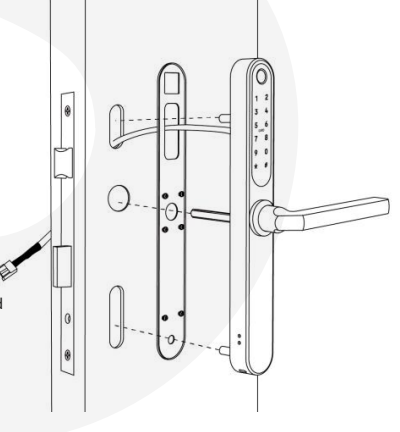

Connect Front and Back Panel Wires

Carefully connect the wires between the front and back panels, ensuring proper alignment and secure attachment.

Screenshot 2024-11-22 at 13.43.26

Screenshot 2024-11-22 at 13.43.26

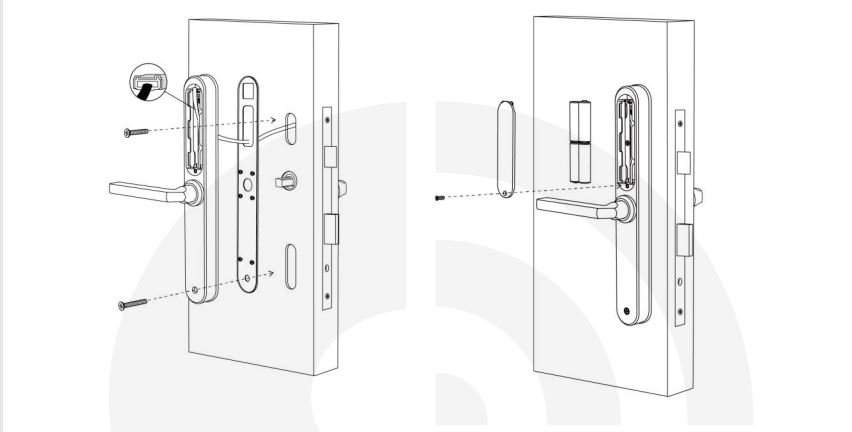

Fit Front & Back Panels:

Secure both panels and complete the lock assembly.

Screenshot 2024-11-22 at 13.41.24

Screenshot 2024-11-22 at 13.41.24


Test Lock Operation:

Lift the handle to engage deadbolts/hooks, then pull down to disengage.

Why Choose Simpled DFF-SP?

  • Keyless Convenience: Unlock with app, fingerprint, code, or card.

  • Advanced Features: Auto-lock, multiple unlocking methods, and remote control options.

  • Easy Installation: Compatible with most multipoint locks; step-by-step guidance available.
