Simpled PG-SP WiFi Bridge

Simpled Smart PG-SP WiFi Bridge Specifications:

Original HubSpot URL: https://learn.simpled.uk/smart-lock-gateway-pg

Model:                                            PG-SP

Dimensions:                                  70mm x 70mm x 26mm

Network port interface:              RJ45

Network port rate:                       10M/100M

IEEE standard:                             802.3/802.3af(PoE)

Power interface:                          Type-C USB/POE

Power input:                                 5V 0.5A or powered by PoE

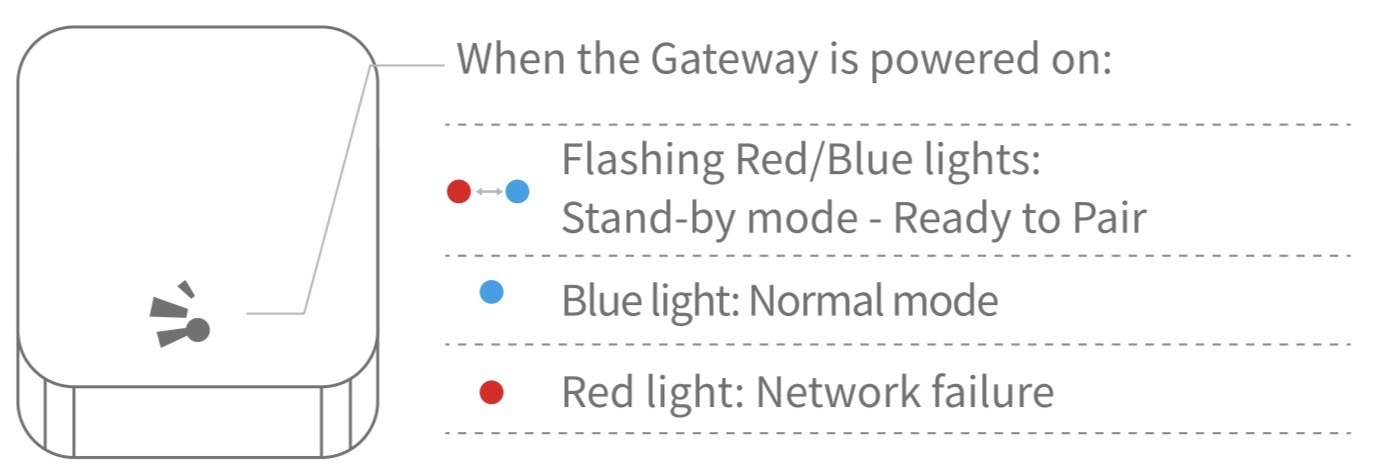

Light Status:

IMG_0177

IMG_0177

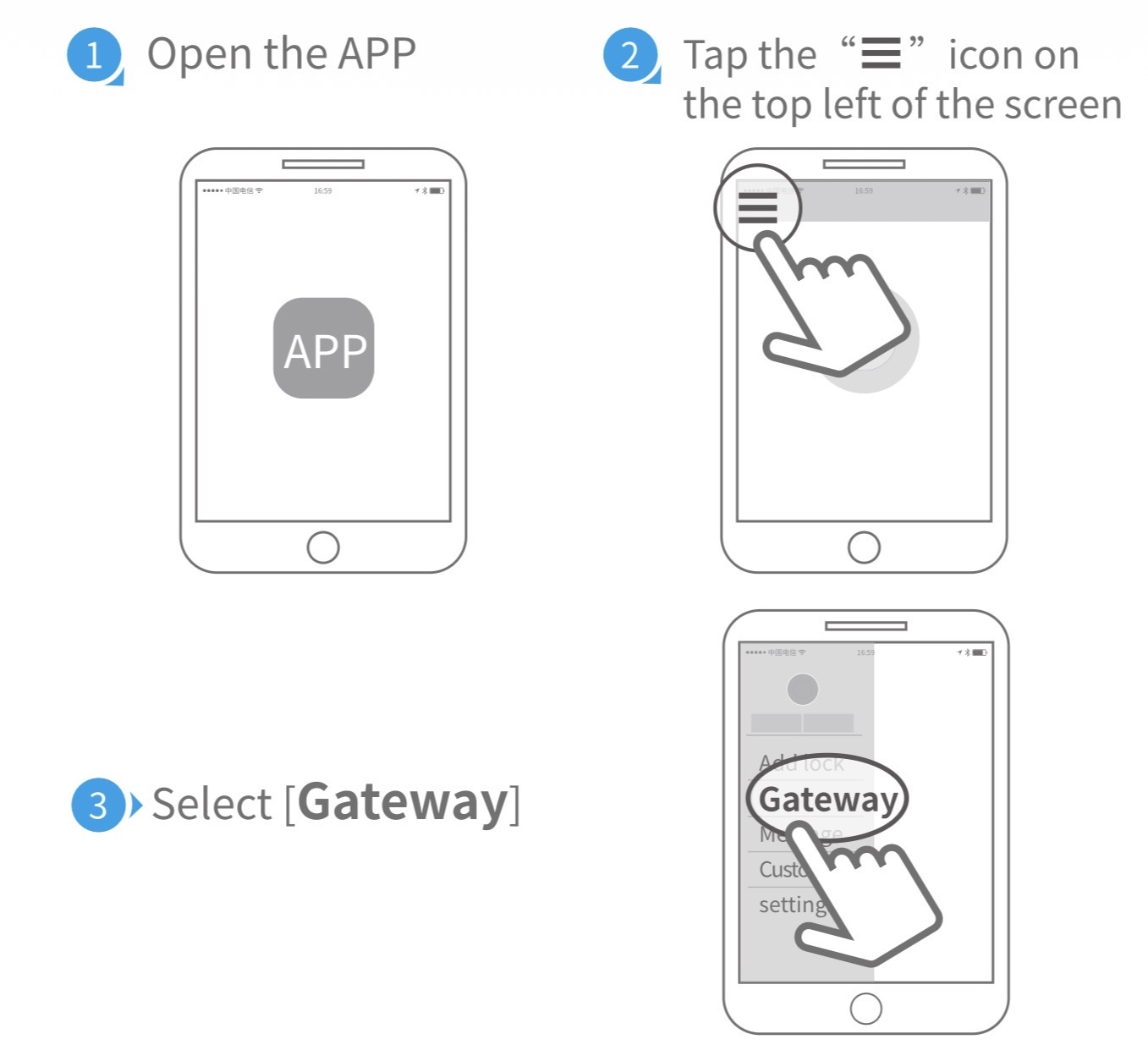

Pair the Gateway with APP:

IMG_0178

IMG_0178

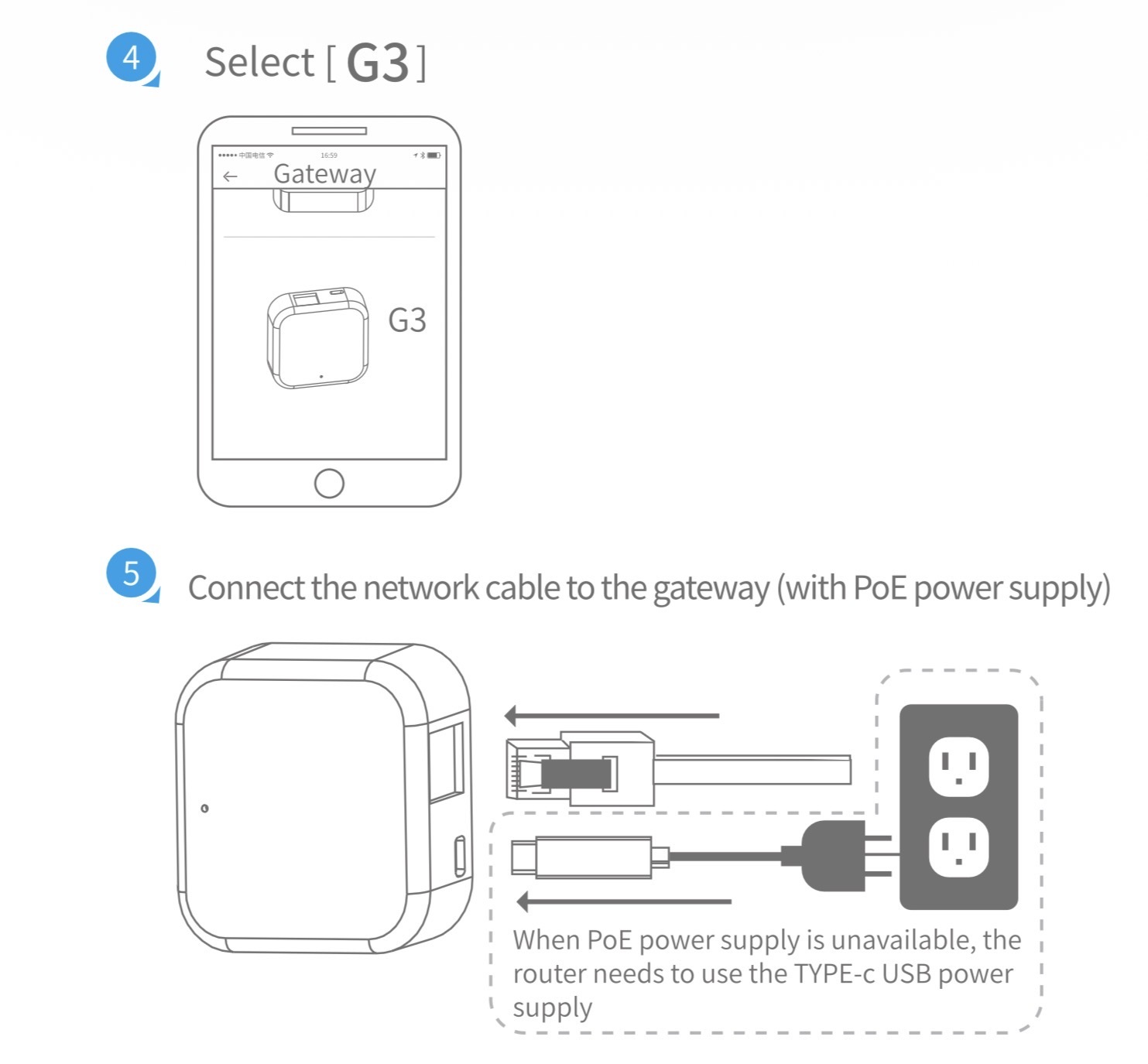

IMG_0179

IMG_0179

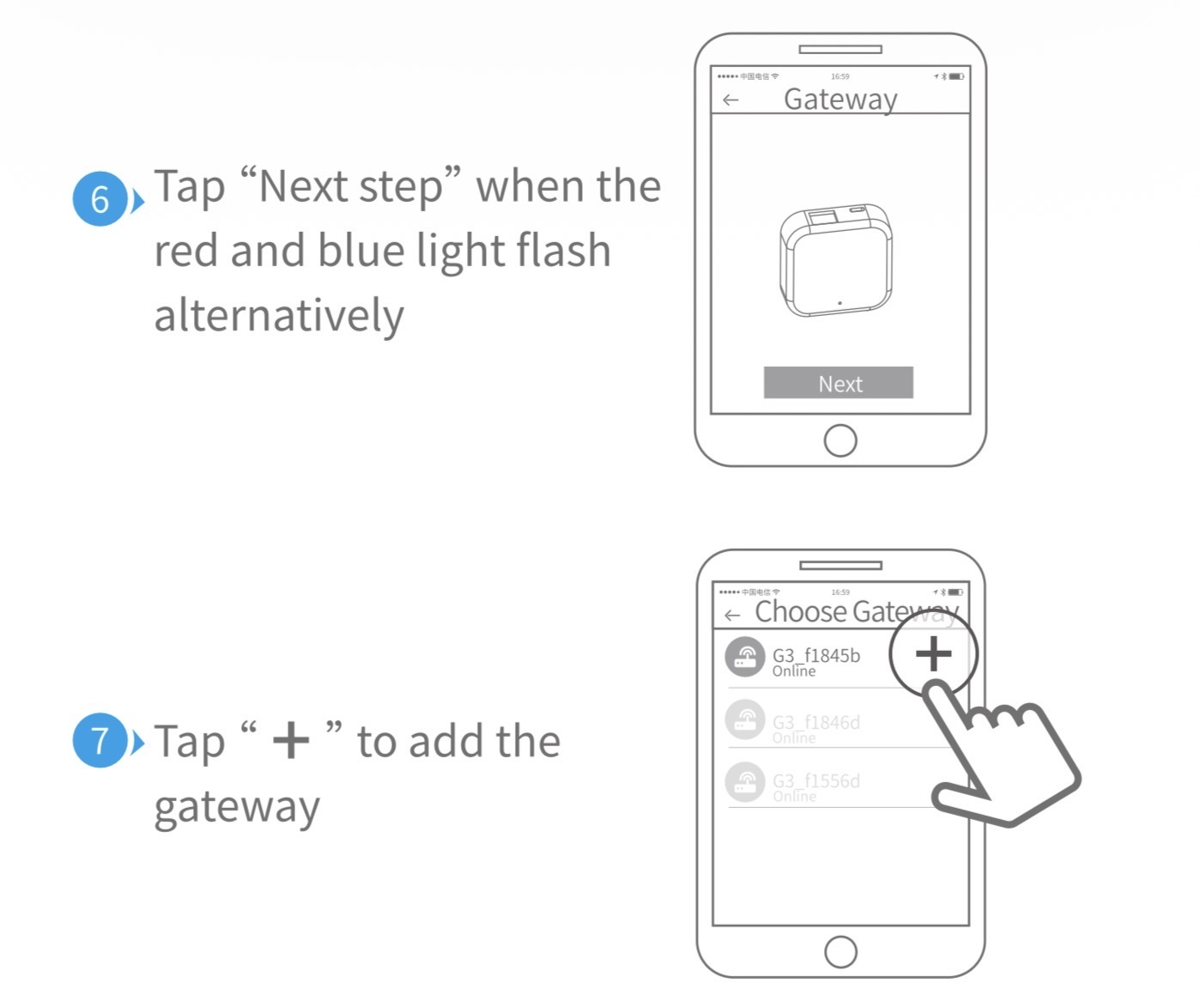

IMG_0180

IMG_0180


Limited Warranty

  1. For any defect in material and workmanship, the original purchaser of the product can:

  1. Return or ask for a replacement within 7 invoice days.

  2. Ask for a replacement within 15 invoice days.

  3. Ask for free repair in 365 invoice days.

  1. This warranty does not cover defects caused by modification, alteration, misuse or physical abuse of the product.

FCC WARNING

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

To maintain compliance with FCC' s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.

Disclaimer

We continuously optimize products as new technologies and featu developed. For this reason, we reserve the right to make alterations to the products without prior notice.
