Simpled RF Smart Cylinder

Effortless Security for Every Home

Original HubSpot URL: https://learn.simpled.uk/simpled-rf-smart-cylinder

What's Included?

• x2 Mechanical Key

• Proximity Fobs

• Smart Cylinder

• Suction Cup

• Screwdriver

• Manual

Features

• Keyless Entry: Unlock with your fingerprint, NFC card, smartphone app, or mechanical key.

• Compact & Durable Design: Built with premium aluminium alloy and brass for a sleek, reliable finish.

• Water-Resistant: Rated IP5X for dust and splash resistance.

• Flexible Integration: Compatible with most 60mm night-latch locks (excluding Banham locks).

• Optional Accessories: Expand functionality with a wireless keypad, remote controller, or smart home integrations like Alexa and Google Home (sold separately).

• Emergency Power Backup: Equipped with a Micro Type-C charging port for uninterrupted access.

Specifications

• Model: RF-SP

• Materials: Aluminum Alloy/Brass

• Colours: Black, Silver

• Unlock Methods: Fingerprint, IC Card (NFC), Smartphone App, Mechanical Key

• App Compatibility: TTLock (Android 4.3+/iOS 7.0+)

• Waterproof Level: IP5X (Dust and Splash Proof)

• Emergency Power Supply: Micro Type-C Charging Port

• Power Source: 1x CR123A Lithium Battery

• Working Temperature: -20°C to 70°C

• Working Humidity: 20%–93% RH (no condensation)

• Reader Dimensions: 42x42 mm

Optional Features

Expand functionality with additional accessories:

• Wireless Keypad: For remote passcode entry.

• Remote Controller: For quick unlocking.

• Smart Home Integration: Works with Alexa and Google Home via compatible units.

Installation Steps

1. Identify the Lock Type: Confirm compatibility with your existing 60mm night-latch lock (e.g., Yale, Era, Legge). This product is a keyed cylinder replacement; the night latch itself is not included.

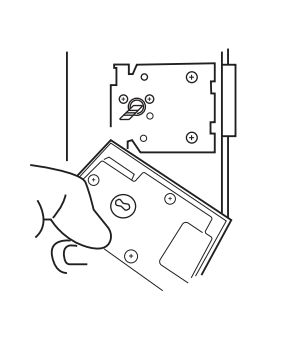

2. Remove the Existing Latch: Unscrew and remove the night latch from the inside of the door. Retain all screws and components.

Screenshot 2024-11-21 at 16.47.23

Screenshot 2024-11-21 at 16.48.03

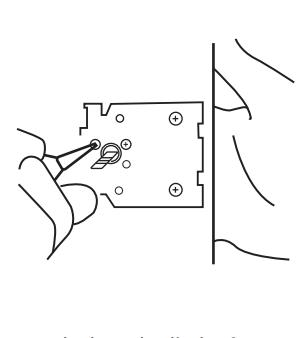

1. Remove the Keyed Cylinder: Detach the cylinder and set aside the screws and backplate for reuse.

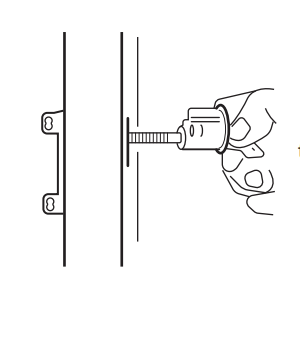

Screenshot 2024-11-21 at 16.48.15

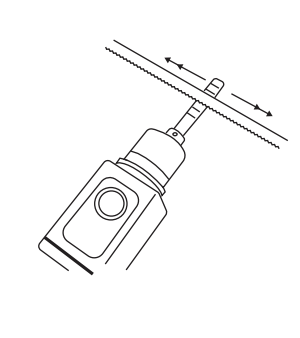

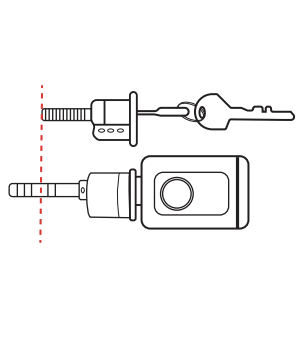

1. Prepare the Tailpiece: Align the new cylinder with the door and mark the correct tail length. Use a hacksaw to trim it as needed.

Screenshot 2024-11-21 at 16.48.23

Screenshot 2024-11-21 at 16.48.31

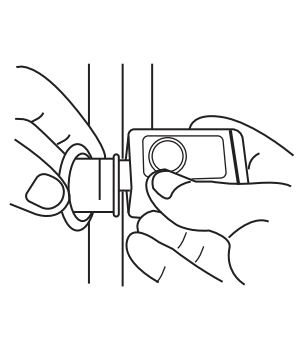

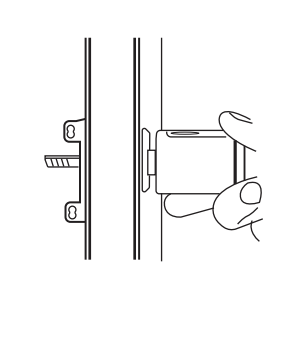

1. Install the Cylinder: Attach the existing ring to the brass cylinder and push the new lock into place. Hold temporarily with masking tape if needed.

Screenshot 2024-11-21 at 16.48.37

Screenshot 2024-11-21 at 16.48.42

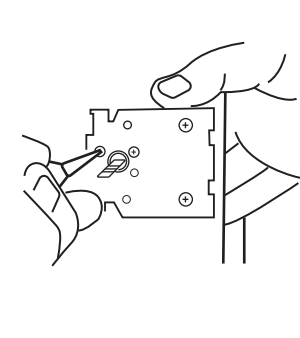

1. Secure the Cylinder: Use the retained screws to secure the cylinder in place.

Screenshot 2024-11-21 at 16.48.49

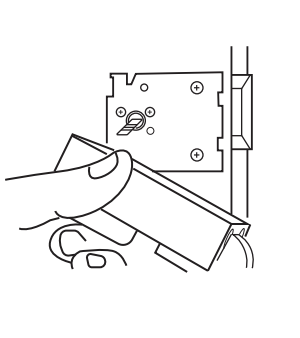

Screenshot 2024-11-21 at 16.48.54

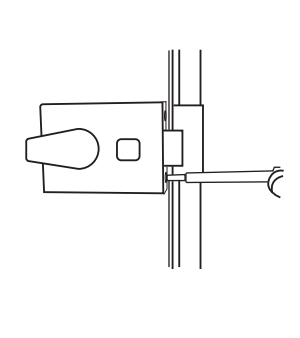

1. Reattach the Latch: Refit the latch onto the backplate and secure it with screws.

Screenshot 2024-11-21 at 16.48.58

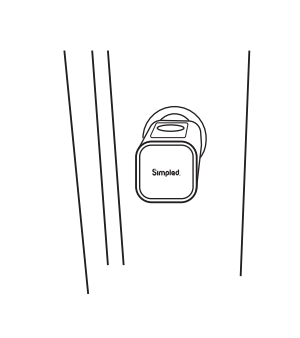

Screenshot 2024-11-21 at 16.49.02

1. Completion: Test the lock’s functionality with all available unlocking methods.

Tips for Installation Success

• For outdoor use, position the fingerprint sensor facing downward to protect it from dirt and moisture.

• Refer to the provided user manual or scan the included QR code for detailed instructions and video guides.

Why Choose the Simpled RF Smart Cylinder?

• Enhanced Security: Multiple unlocking methods ensure reliable and secure access.

• User-Friendly: Simplifies installation with a compact, easy-to-use design.

• Smart Features: Manage access remotely via the TTLock app.

• Versatile Compatibility: Fits most standard night-latch locks, excluding Banham.

• Reliable Performance: Operates in a wide range of temperatures and humidity levels.

Contact Support: For questions or additional assistance, reach out to [email protected]

Or refer to the video provided here for a Step by Step tutorial!
