Simpled SF Series Smart Lock: The Future of Keyless Home Security

Advanced Features, Durable Design, and Effortless Convenience for Modern Living

Original HubSpot URL: https://learn.simpled.uk/simpled-sf-series-smart-lock-the-future-of-keyless-home-security

Key Features

• Multiple Unlocking Methods: Bluetooth, fingerprint, password, proxy fob, emergency key, Alexa/Google Home (with Wi-Fi bridge).

• Auto-Lock: Automatically locks the door for added security.

• Passage Mode: Keeps the door unlocked for easy access.

• Reversible Handles: Can be installed on either side.

• Weatherproof: Only the outside panel is weatherproof. The internal panel must be installed in a covered, dry area.

Specifications

• Model: SF-SPS

• Materials: Stainless Steel 304 (Handle), Aluminum Alloy (Panel)

• Weight: 2.5 KG

• Battery: 6V / 4 x AA Alkaline (Lithium recommended)

• Door Thickness: 35-65mm

• Data Capacity: Fingerprint: 200, Passcode: 150, Fob: 200, eKeys: Unlimited

• Working Temp: -10°C to 55°C

Included

• 2x Proxy Fobs

• 2x Emergency Keys

• 1x Phone Tag Sticker

• 4x Lithium Batteries

• 1x Spindle (60mm)

• 1x Split Pin

• 1x Suction Cup

• 2x Sliding Screws

• 1x M5x25mm Screw

• 1x M5x30mm Screw

• 1x M5x40mm Screw

• 1x M5x50mm Screw

• 1x M5x60mm Screw

• 1x M5x70mm Screw

• 1x Cable Extender

• 4x Mortise Screws (for Wooden Door)

• 4x Mortise Screws (for Aluminum Door)

• 1x Spindle (80mm)

• 2x Rubber Gaskets

Installation

Remove Old Handle

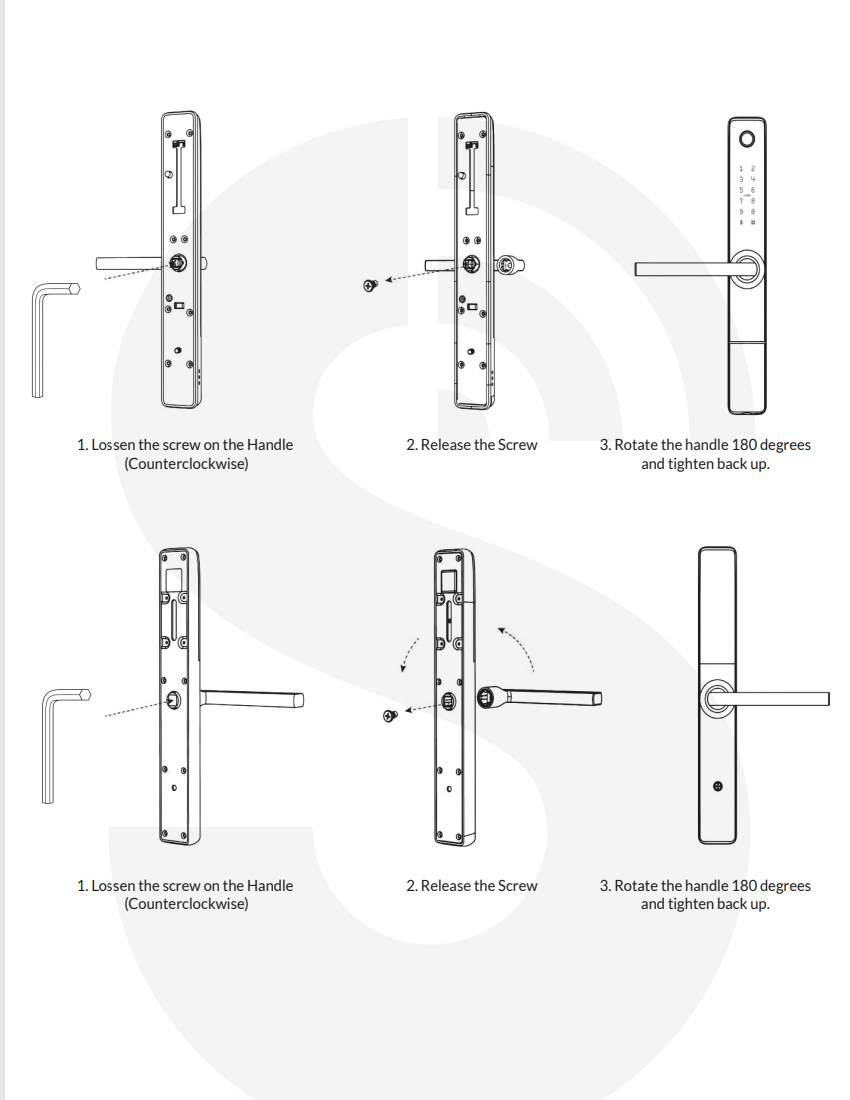

Screenshot 2024-11-21 at 16.25.19

Test Compatibility with a multipoint lock

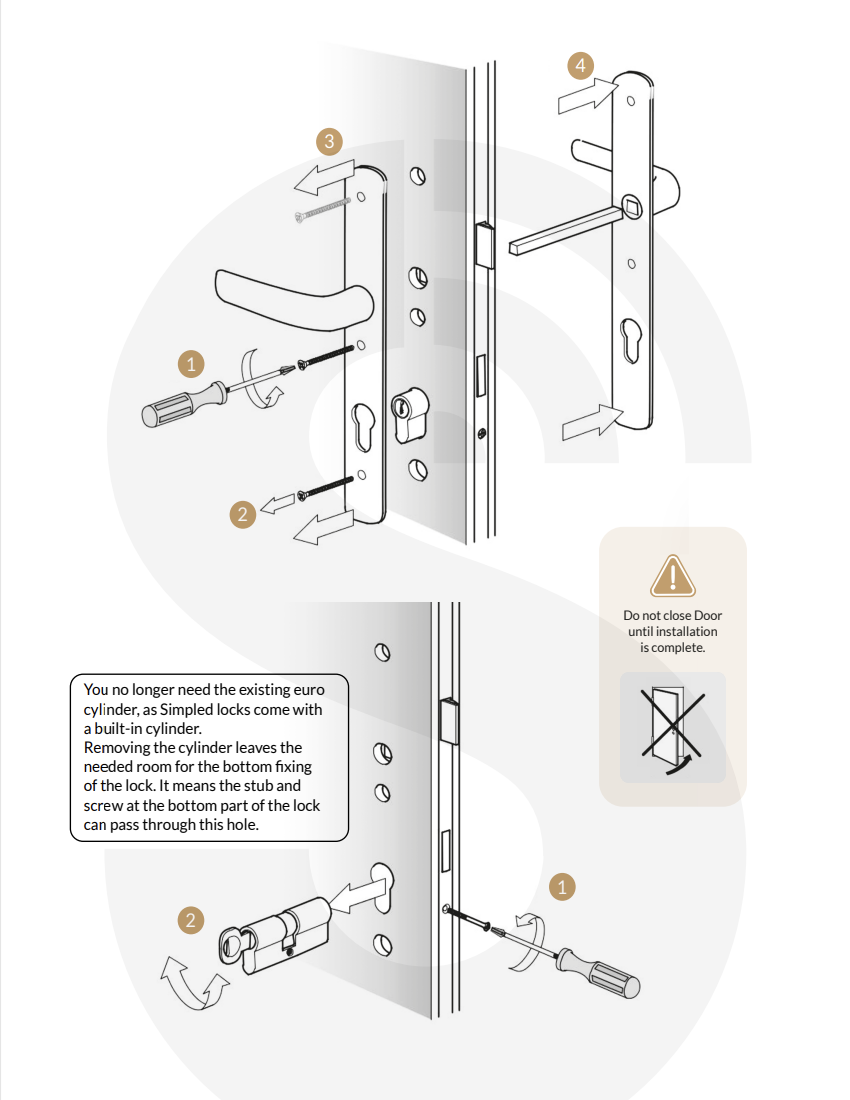

Screenshot 2024-11-21 at 16.25.10

Install Mortise & Spindle

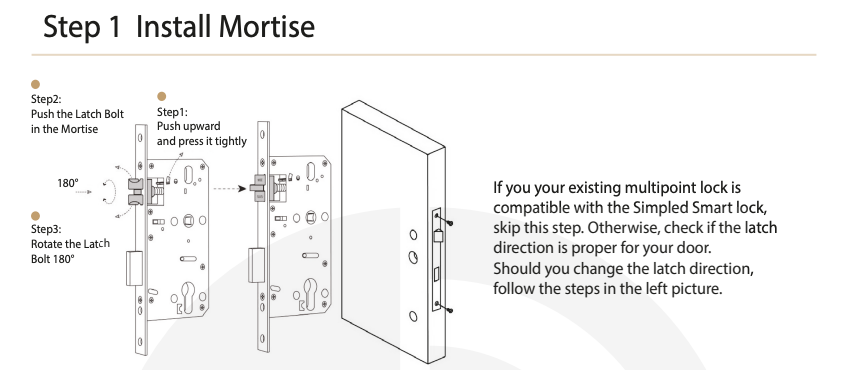

Screenshot 2024-11-21 at 16.26.00

Fit Front & Back Panels

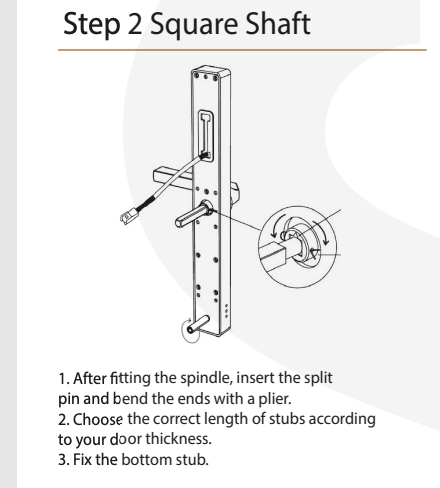

Screenshot 2024-11-21 at 16.26.10

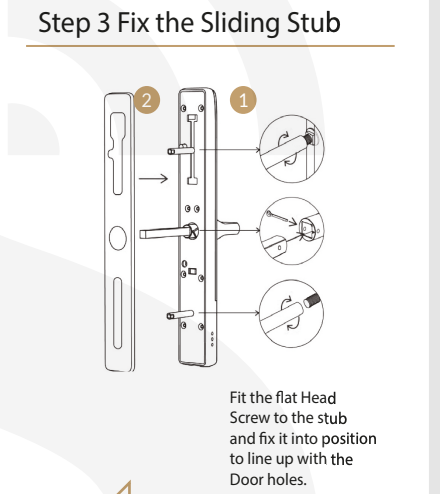

Screenshot 2024-11-21 at 16.26.20

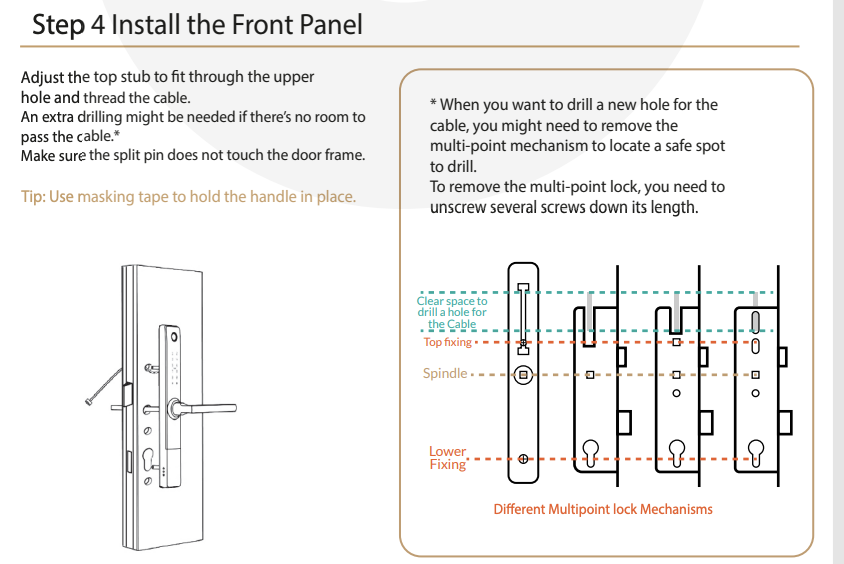

Screenshot 2024-11-21 at 16.26.30

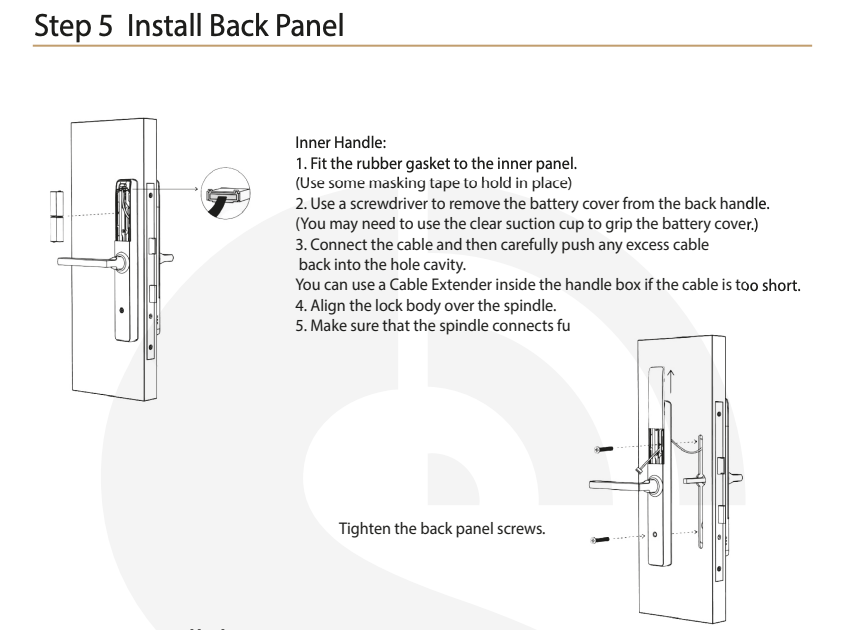

Screenshot 2024-11-21 at 16.26.39

Connect Cables & Install Batteries

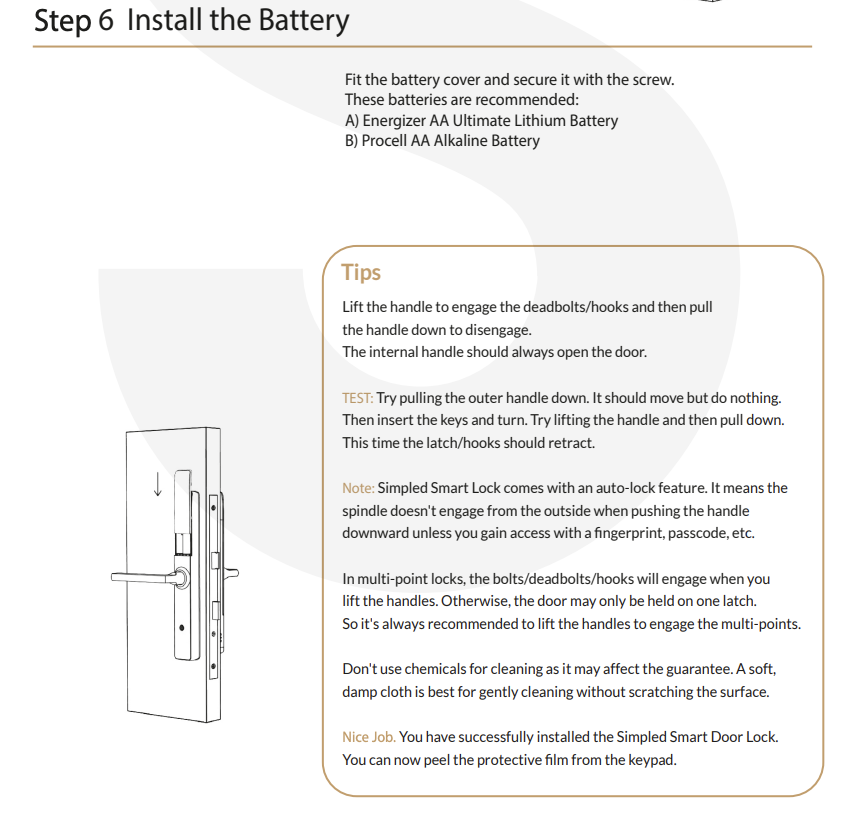

Screenshot 2024-11-21 at 16.31.31

Test: Lift the handle to engage bolts, and pull down to disengage.

See below for diagrams, If you require further guidance watch our step-by-step YouTube tutorial below.

Why Choose Simpled SF?

• Keyless entry with Bluetooth, fingerprint, and more.

• Auto-lock and passage mode for convenience.

• Compatible with most multipoint locks.

Upgrade to Simpled SF Series Smart Lock for a modern, secure entry solution. For support, contact [email protected].
